Stepper Motor 14HS20-1504S

Stepper Motor 14HS20-1504S

Regular price $21.95 USD
Regular price Sale price $21.95 USD
Sale Sold out
Shipping calculated at checkout.
In stock, ships in 1-3 business days.
View full details

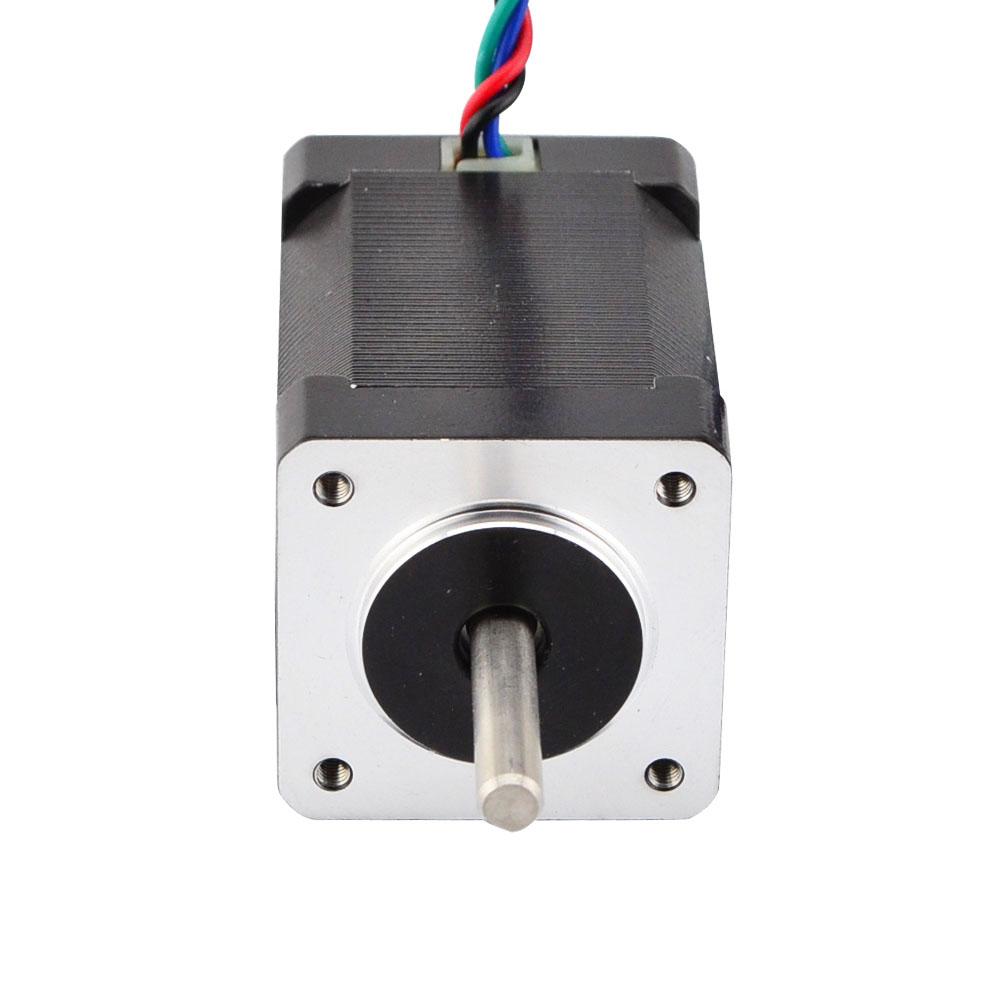

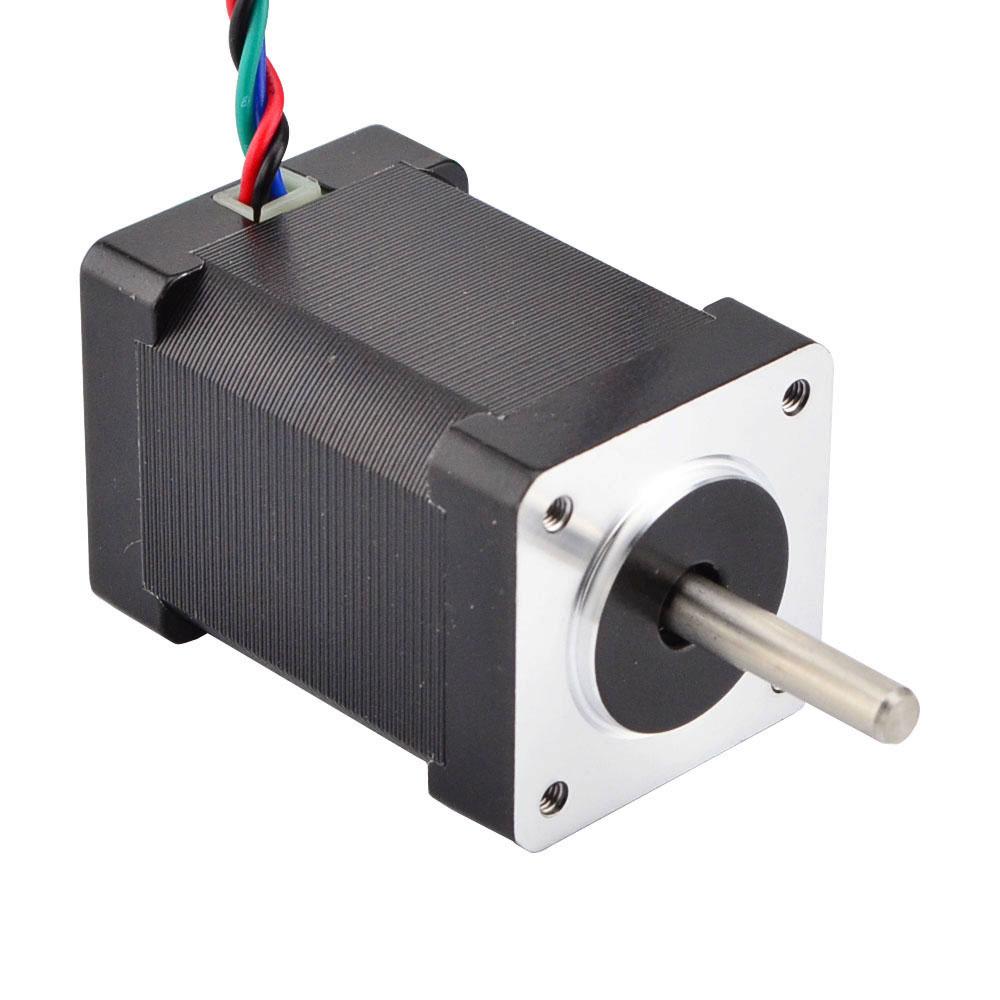

This Nema 14 stepper motor is the strongest model in Nema 14 size motors, it with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with holding torque 40Ncm (56.7oz.in).

Electrical Specification

  • Manufacturer Part Number: 14HS20-1504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 40Ncm(56.7oz.in)
  • Rated Current/phase: 1.5A
  • Voltage:4.2V
  • Phase Resistance: 2.8ohms
  • Inductance : 3.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 52mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 290g
