- Aluminum Plate - Cast Tool & Jig - 5/16" (8mm) thick. Stress relieved. ATP5 alloy.
- Surface is precisely machined.
- Mounting holes are drilled and counterbored for M3 socket head cap screws (see drawing).
- Plate has blind holes on the bottom side tapped for M3 that can be used for thermal fuse attachment and grounding.
- Keenovo Silicone AC heater has a built-in thermistor.
- Heater and PEI sheet have 3M adhesive pre-applied. Parts are not glued together. Assembly is required.
- The kit includes knurled nuts and stainless steel mounting screws.
- Compatible with VORON 2.4r2.
We offer 3 options for printing surface with our kits:

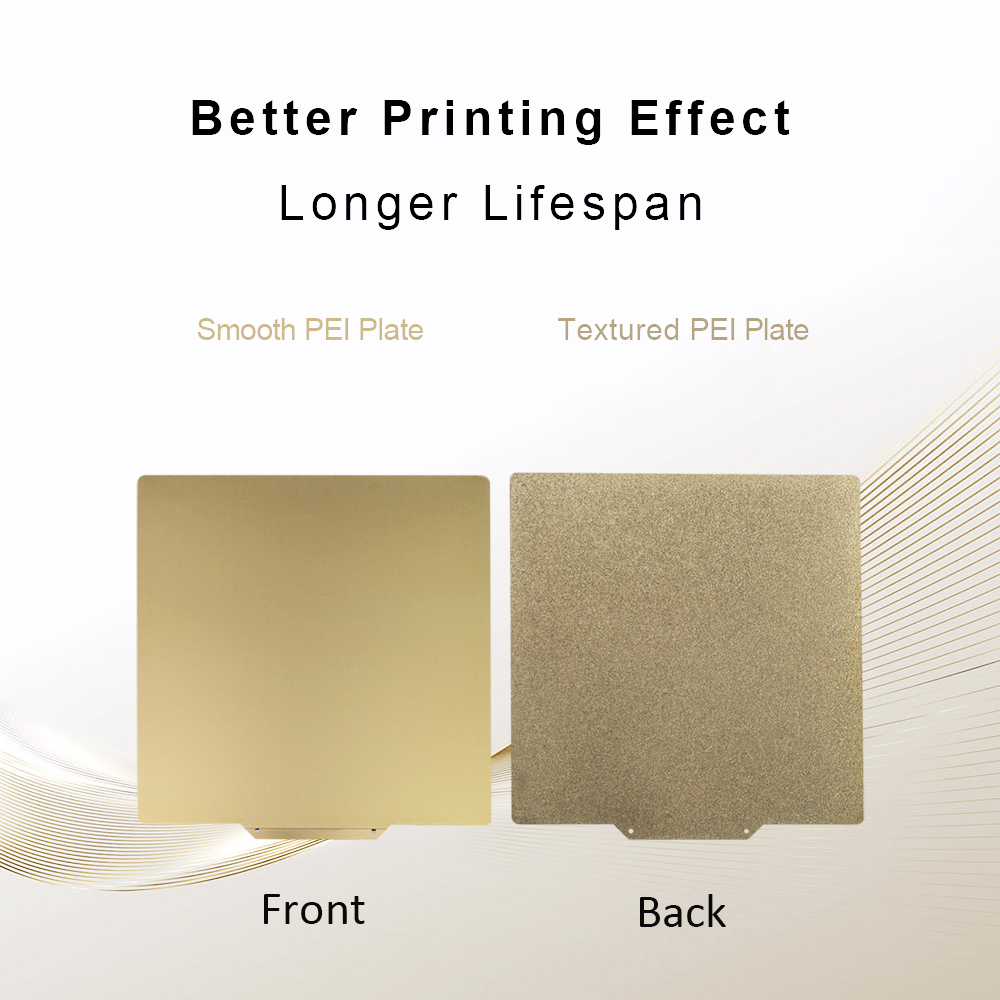

1. The magnetic flex plate option includes a thin, flexible steel sheet coated with PEI on both sides. One side is smooth, and the other side is textured. It also comes with a flexible magnet with adhesive on one side. When you permanently attach the magnet to the aluminum plate, and then stick the flex sheet to the magnet, you can remove the flex sheet after each print. You can then flex it to remove the prints, clean it, and easily replace it if it becomes damaged.
2. The PEI film option has a PEI plastic sheet with adhesive on one side. You permanently attach this sheet to the aluminum plate.
3. Bare aluminum plate (bring your own printing surface)
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Buildplate | ||
| PEI 0.010" Sheet - 250x250mm | 1 | 3M 200MP Adhesive is pre-applied |
| PEI 0.010" Sheet - 12" x 12" | 1 | 3M 200MP Adhesive is pre-applied |
| PEI 0.010" Sheet - 14" x 14" | 1 | 3M 200MP Adhesive is pre-applied |
| Magnetic Flex Plate Set | 1 | Includes magnetic base and two-sided flex plate (smooth + textured) |
| Magnetic Flex Plate Set | 1 | Includes magnetic base and two-sided flex plate (smooth + textured) |
| Magnetic Flex Plate Set | 1 | Includes magnetic base and two-sided flex plate (smooth + textured) |
| ATP5 5/16" Plate - 10"x10" | 1 | Drilled, counterbored and tapped in DigMach workshop |
| ATP5 5/16" Plate - 12"x12" | 1 | Drilled, counterbored and tapped in DigMach workshop |
| ATP5 5/16" Plate - 14"x14" | 1 | Drilled, counterbored and tapped in DigMach workshop |
| Keenovo Silicone AC Heater w/ thermistor - 200x200mm (500W, 110V) | 1 | |
| Keenovo Silicone AC Heater w/ thermistor - 240x240mm (600W, 120V) | 1 | |
| Keenovo Silicone AC Heater w/ thermistor - 300x300mm (750W, 120V) | 1 | |
| M4 Knurled Nut (DIN 466-B) | 4 | |
| M3x16mm SS SHCS | 4 | |
Notes:
1. The actual aluminum plate size can vary by a few mm, but drilling pattern ensures it fits perfectly on the frame. The magnetic/flex plate can be a few millimeters bigger or smaller than the heat bed.
2. Plate flatness tolerance is 0.381mm. Gauge tolerance is ±0.127mm.
